How AVMR Protected Sensitive Equipment in Transit

Introduction

Some vibration and shock problems carry consequences far beyond inconvenience. In one major AVMR project, the challenge was to protect highly sensitive particle accelerator modules during international transport for a world-famous scientific and R&D organisation. The equipment being moved was worth several million pounds, and damage in transit would have created serious financial and reputational risk.

This was not a standard transport support problem. The modules were extremely sensitive, the allowable acceleration levels were tight, and the transport journey itself introduced multiple potential shock and vibration hazards.

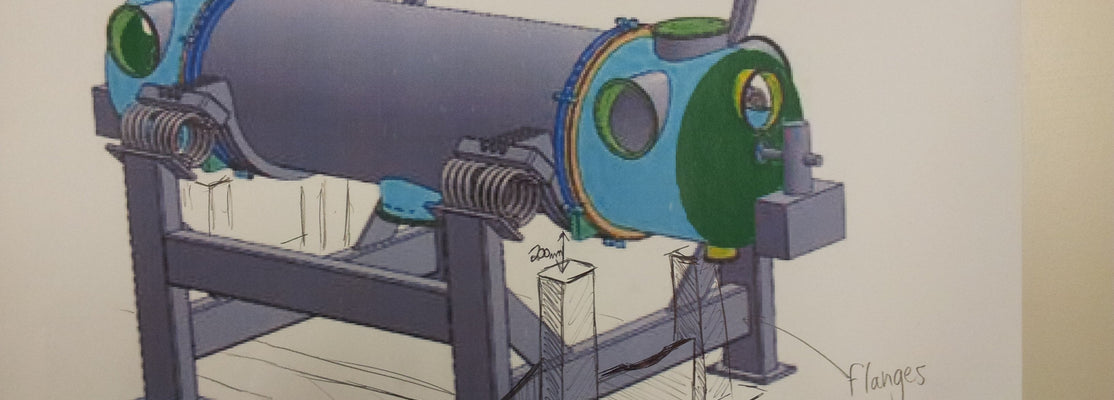

Above is an example of a transport frame developed for moving and orientating sensitive scientific equipment.  Significant levels of analysis were conducted to understand vibration and shock input, and how to isolate it.

The problem

AVMR was tasked with designing and manufacturing transportation beds for the particle accelerator modules. The requirement was not just to provide support during transit, but to control the dynamic environment experienced by the equipment over the full journey.

According to the client’s own report, acceleration limits were set at less than 0.5g at 1σ in the longitudinal and lateral directions, and less than 0.7g vertically at 1σ. There was also a secondary alignment requirement of plus or minus 50 microns on delivery, underscoring just how sensitive the cargo was.

At the time, AVMR was told that no one had successfully delivered particle accelerator modules without recalibration being required afterward. The challenge, therefore, was not just to reduce vibration. It was to make reliable, repeatable damage-free delivery possible.

AVMR’s approach

AVMR analysed the overall transport journey, identified the greatest risk areas, and designed a solution to manage them. The anti-shock cradle arrangement used an upper welded assembly, a lower welded assembly fixed to the trailer, and spring-based isolation between the two to protect the girder above [file:26].

The product family central to this project was AVMR’s wire rope mounts, used as part of a broader anti-shock and anti-vibration transport strategy. This was a solution built around route risk, shock loading, vibration input, and the consequences of failure rather than a simple static load calculation.

The client’s test programme instrumented both the upper and lower parts of the mounting system with accelerometers sampling at 400 Hz across the three principal axes. Measurements were recorded over 7.1 days, covering the full transport journey and capturing approximately 760 million data points per accelerometer.

The outcome

The resulting report concluded that the AVMR anti-shock mounts mitigated both general road noise and discrete shock events. Under typical road conditions, the report states that the mounting solution reduced road noise by around 20 percent over the already reduced input provided by the air-ride trailer. For shock events, the report identified significant reductions in peak acceleration, ranging from approximately 200 percent up to 900 percent depending on the event and frequency relationship

Most importantly, the project achieved what had previously not been done reliably. The particle accelerator modules were delivered without the recalibration that had been considered unavoidable. The customer was sufficiently impressed that it produced a white paper on AVMR’s work, documenting the measured performance of the anti-shock frames.

What this project shows

This case study demonstrates the difference between supplying a mount and engineering a transport protection system. The key to success was not simply selecting an isolator. It was understanding the journey, quantifying the risks, and designing around the actual dynamic environment.

For organisations moving sensitive, high-value equipment, that distinction is critical. A product on its own is not enough if it has not been selected and integrated with a full understanding of shock events, vibration input, structural behaviour, and failure consequences.

The AVMR difference

AVMR’s role in this project combined product expertise, transport risk analysis, and applied engineering judgment. That is why the result stood out so strongly to the client.

The project remains a powerful example of AVMR’s wider capability: solving difficult shock and vibration problems where the cost of failure is exceptionally high and where success depends on translating technical understanding into a solution that performs in the real world.
