Drive System Vibration Isolation Mount (50 - 1000 daN)

What is a Drive System Vibration Isolation Mount?

This "Drive System Vibration Isolation mount" is commonly used on drive systems, but why?  The reason is that it performs well as a vibration mount, as do all of our isolators, but in the horizontal directions (assuming it is mounted in compression vertically) the performance is not isotropic - the mount is much stiffer in one horizontal direction than in the other.  This is particularly useful if vibration isolation is needed at a point where motors, gearboxes or drive shaft supports may experience thrust which should be resisted.

Further Information

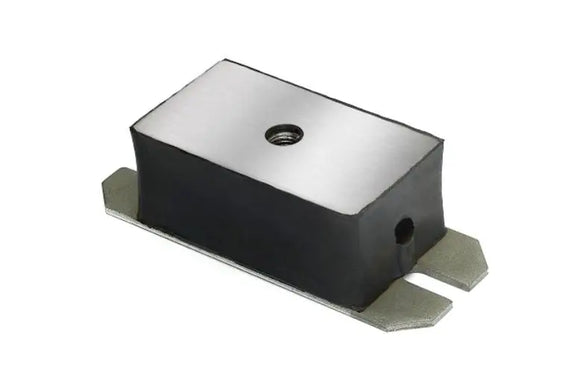

This Vibrostop Pedestal mount is an anti-vibration rubber/metal block suitable for isolating vibrations created by machinery and industrial equipment (presses, machine tools, etc.) and civil installations (pumps, compressors and refrigeration units).

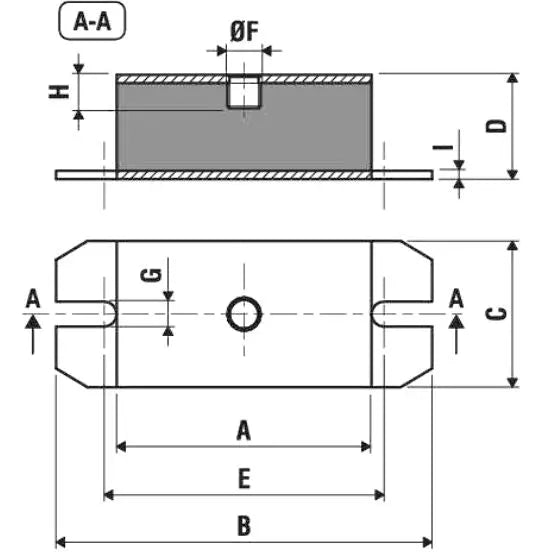

These have a compact and simple geometry with a broad upper supporting surface, a central threaded hole for stable positioning of the machinery and through-holes in the base plate for floor fixings.

Features / benefits

• limited overall height
• large support surface for the machine
• can be fixed to the machinery and to the floor

Materials:

• Rubber used: natural rubber
• Metal used: plated mild steel

The deflection data in the table below is for guidance only.

This product typically has a 3 week lead time, but this can double during the holiday season.
