Description

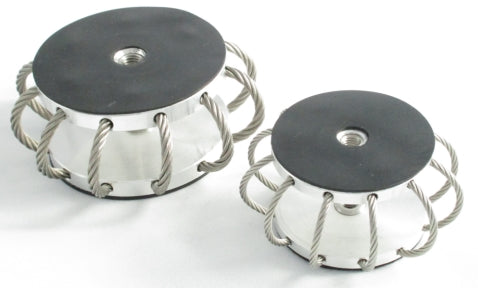

High Frequency Radial Wire Rope Mounts
Highly effective wire rope mounts are used for shock and vibration applications and have the following key features:
- Multi-directional & compact
- Highly reliable and long life with very low aging
- Non-magnetic
- Low transmissibility at resonance (lower than 3)
- Temperature range: -40°C to 80°C
- Naturally high damping rates (compared to elastomers)
- Uniform lateral (shear) properties in each direction
Typically used on speakers, lab instruments, cameras, vehicles (incl. drones), fragile equipment.
Materials:
- Stainless steel (316) cables and inserts
- Aluminium discs
- CR (Neoprene) pads

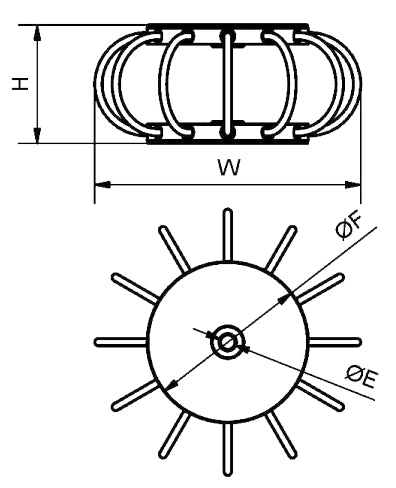

| Product | Static Load Range | Stiffness | Static deflection | F (Dia) | H | W | E |
| daN | N/mm | mm | mm | mm | mm | Thread | |
| V-AVAUHF-20 | 0.25 - 1.8 | 6.6 | 0.1 - 2.2 | 54.5 | 40 | 79 | M6 |
| V-AVAUHF-25 | 1 - 3.6 | 13 | 0.2 - 2.4 | 54.5 | 40 | 79 | M6 |
| V-AVAUHF-30 | 3 - 6.7 | 38 | 0.2 - 1.2 | 74.5 | 40 | 94 | M8 |
| V-AVAUHF-40 | 6 - 19 | 96 | 0.3 - 2.8 | 74.5 | 40 | 100 | M8 |
Please Note:
- This product typically has a 3-week lead time, but this can increase to 6 weeks during Summer holidays.
- Please see the download for more information.
