Description

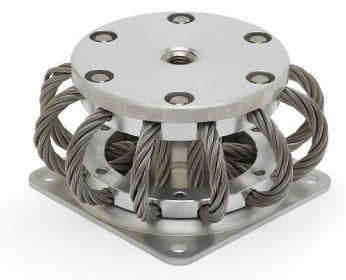

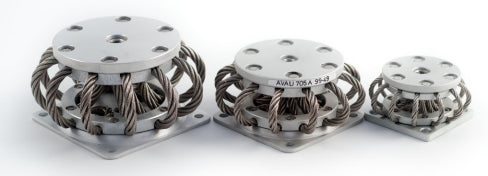

What are Radial Wire Rope Isolator Mounts?
Originally designed for Military use, these wire rope isolator mounts are now much more widespread in their application and are still used by NATO and other Defence organisations as they are highly effective. Our versions of the radial format of a wire rope mount is ther AVAU series, this version sits at the heart of the range.
We generally recommend seeking our selection advice for these mounts.
Key Features & Benefits:
- Conforms to the strictest military standard requirements for performance and resistance to environmental agents.
- Optimised to satisfy MIL-STD-901 D
- Vibration: Natural frequency of 15 – 20Hz
- Shock: Response frequency of 11 – 14 Hz
- Multi-directional, compact and non-magnetic
- Highly reliable and long life with very low aging (for military applications normally replaced after major shock events)
- Low transmissibility at resonance (lower than 3)
- Temperature range: -100°C to 260°C
- Naturally high damping rates (compared to elastomers)
- Uniform lateral (shear) properties in each direction
Materials:
- Stainless steel (316) cables and inserts (*some models use 304)
- Aluminium discs (6061-T6) with SURTEC 650

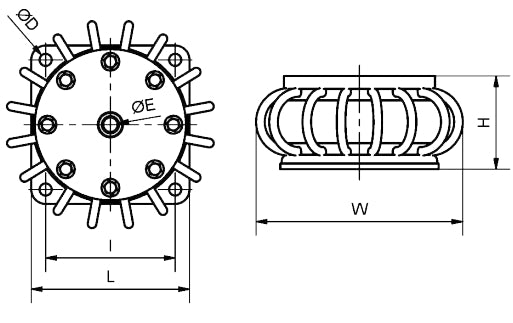

| Product | H | W | L | I | D (Dia) | E (Dia) |
| V-AVAU-65-33 (703) | 33 | 65 | 55 | 42 | 6.5 | M6 |
| V-AVAU-70-33 (8S 703) | 33 | 70 | 54 | 42 | 6.5 | M6 |
| V-AVAU-78-37 (703) | 37 | 78 | 60 | 48 | 6.5 | M8 |
| V-AVAU-74-41 (704) | 41 | 74 | 60 | 48 | 6.5 | M8 |
| V-AVAU-77-41 (705) | 41 | 77 | 60 | 48 | 6.5 | M8 |
| V-AVAU-92-43 (703) | 43 | 92 | 70 | 58 | 6.5 | M8 |
| V-AVAU-93-45 (704) | 45 | 93 | 70 | 58 | 6.5 | M8 |
| V-AVAU-95-46 (705) | 46 | 95 | 70 | 58 | 6.5 | M8 |
| V-AVAU-102-50 (703) | 50 | 102 | 77 | 62 | 6.5 | M8 |
| V-AVAU-98-48 (704) | 48 | 98 | 77 | 62 | 6.5 | M8 |
| V-AVAU-99-49 (705) | 49 | 99 | 77 | 62 | 6.5 | M8 |
| V-AVAU-99-49 (706) | 49 | 99 | 77 | 62 | 6.5 | M8 |
| V-AVAU-118-54 (704) | 54 | 118 | 91 | 75 | 6.5 | M10 |
| V-AVAU-121-54 (704) | 54 | 121 | 91 | 75 | 6.5 | M10 |
| V-AVAU-119-56 (706) | 56 | 119 | 91 | 75 | 6.5 | M10 |
| V-AVAU-121-63 (707) | 63 | 121 | 91 | 75 | 6.5 | M10 |
| V-AVAU-143-65 (706) | 65 | 143 | 110 | 90 | 8.5 | M12 |
| V-AVAU-145-70 (707) | 70 | 145 | 110 | 90 | 8.5 | M12 |
| V-AVAU-146-70 (708) | 70 | 146 | 110 | 90 | 8.5 | M12 |
| V-AVAU-170-75 (708) | 75 | 170 | 125 | 105 | 10.5 | M14 |
| V-AVAU-169-84 (7010) | 84 | 169 | 125 | 105 | 10.5 | M14 |
Please Note:
- Lead Times are typically 3 weeks for these products, but in Summer and Winter holiday periods this can double.
- Please see the download document for further information
