605519 Simple Rubber Machine Foot Isolator (50 - 400 daN)

605519 Simple Rubber Machine Foot Isolator - overview

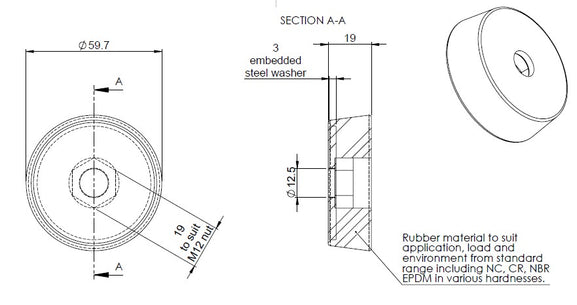

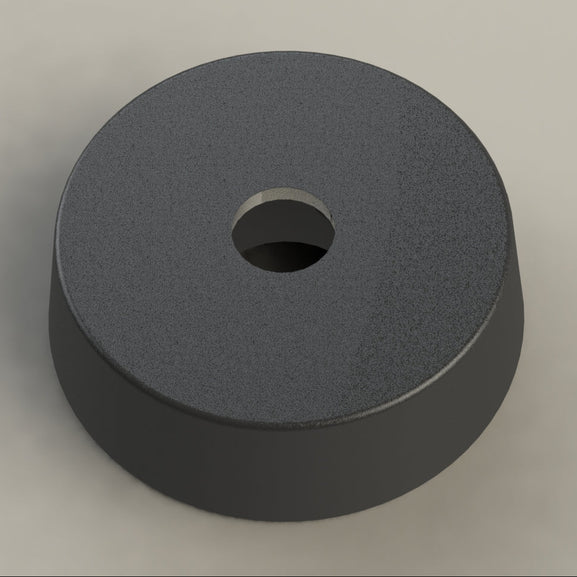

The 605519 Simple Rubber Machine Foot Isolator has a fully enclosed and bonded load bearing disc, and a 19mm hexagonal recess underneath to accept a standard M12 bolt head.  With many Anti Vibration Machine feet the bolt is not quite the right length.  With this simple foot, the right length bolt can be selected for each application.

The standard item is a 50 Sh°A rubber foot, but is also available in a stiffer 70Sh°A compound for heavier loads.

Features and Benefits:

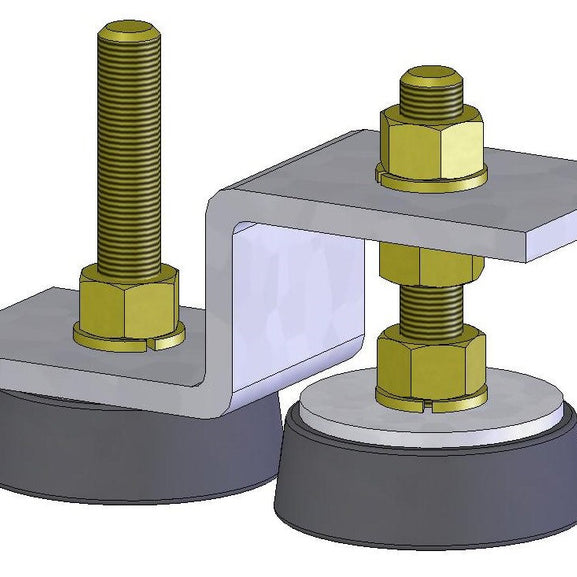

• This simple foot allows the user to add their preferred length of M12 bolt
• A very thin film of rubber covers the top of the metal washer for additional corrosion protection
• Profiled recess to accept the hexagonal head of an M12 bolt
• Load range from 50 daN to 320 daN
• Nitrile options available (contact us) for the oil resistant variant.
• Manufactured in our UK factory to allow custom variants

Lead Time:

Typically shipped on the next working day.

Product Models and Loading
