Description
Rubber Anti Shock and Anti Vibration Feet for Machines
The TSGE is a practical Anti Vibration & Shock absorbing machine foot with a bolt for connection to the isolated equipment. It is perfect for isolating air-conditioning units and other HVAC machines that do not require fixing to the ground.
The protective steel cap provides a good support surface and protects the elastomer from environmental agents, increasing its service life and reliability.
It has greater isolation efficiency than other, similar anti-vibration mounts thanks to its ring-shaped geometry, which allows greater deflection than with equivalent solid-section cylindrical isolators.
These feet can support loads from 25 - 400 daN (deca Newtons)
Stainless steel options for this mount are available on request.
Materials:
- Rubber: Bespoke Elastomer
- Metals: Zinc plated mild steel
The lead time for this item is typically 3 weeks, but this can double in the holiday season.

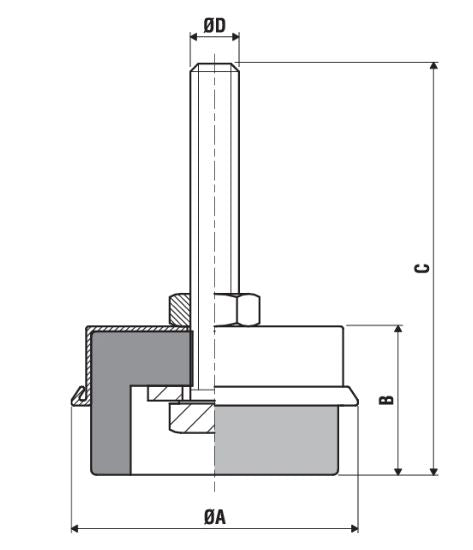

Models, Loads & Dimensions:
| Model | Load Range (daN) | A (dia) | B | C | D (dia) |
| V-TSGE-50-AS | 25 - 50 | 58 | 30 | 65 | M10 |
| V-TSGE-50-N | 50 - 100 | 58 | 30 | 65 | M10 |
| V-TSGE-100-AS | 50 - 100 | 68 | 35 | 64 | M10 |
| V-TSGE-100-N | 100 - 200 | 68 | 35 | 64 | M10 |
| V-TSGE-200-AS | 100 - 150 | 104 | 45 | 105 | M12 |
| V-TSGE-200-N | 200 - 300 | 104 | 45 | 105 | M12 |
| V-TSGE-300-AS | 150 - 200 | 120 | 50 | 110 | M12 |
| V-TSGE-300-N | 300 - 400 | 120 | 50 | 110 | M12 |
