Failsafe Shear Cap Vibration Isolator (150 - 1,300 Kg)

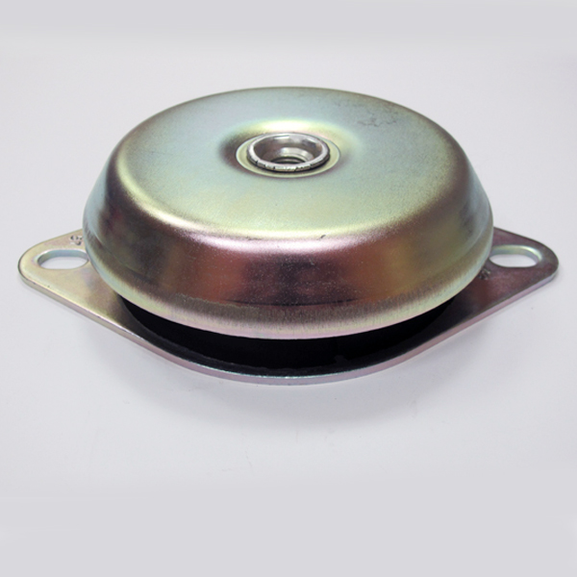

What is a Failsafe Shear Cap Vibration Isolator, or Bell Mount?

The Failsafe Shear Cap Vibration Isolator is a bell-shaped anti-vibration mount.  It is a popular option for rubber/metal anti-vibration pedestal mounts when used with compression loads.  Should there be an issue which compromises the rubber's ability to do its job, the component is held together with a failsafe mechanism.

It provides a low-profile solution for isolation problems of numerous machines with rotation speeds of over 1500 revolutions per minute (compressors, motors, fans and pumps).

The elastomeric component is partially protected by the galvanised steel shell.

This isolator offers a good balance between isolation performance, mount height, and price.

This mount is designed to be used when mounted to a flat horizontal surface.  The load applied then acts vertically downwards towards the ground.

One notable advantage of all Shear Cap, or Bell Mounts, is that their properties tend to be more uniform with small changes in direction of load.  E.g. if used on a ship, the rocking of the ship will have a reduced impact on isolation when compared to standard Pedestal mounts.

Features / benefits

• Load range from 150 to 1,300 Kg

• Low overall height

• Allows the machinery to be fixed to the floor

Sizes and Load Ratings:

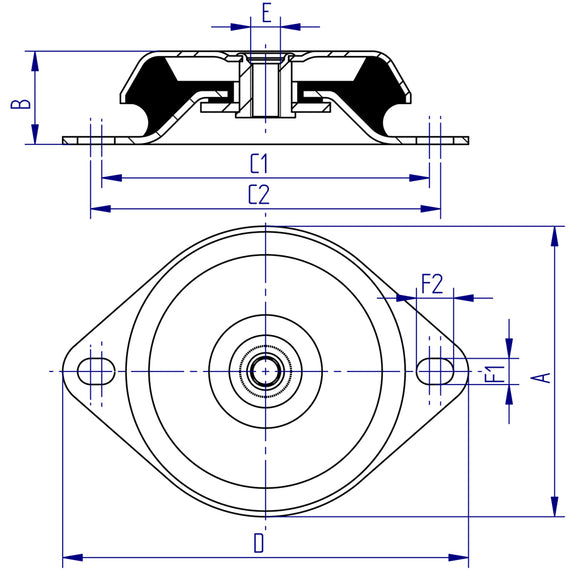

• See image with dimensions below.
• Dimensions in mm
• Loads in Kg.
• Spring Rate in Kg/mm in compression (tolerances are up to +/- 20%)

Lead Time

These items are manufactured by an AVMR supplier.  Typically these items are delivered in 3 working weeks (note: 2 weeks shutdown over Christmas/NY and 4 week shutdown for August).
