Description

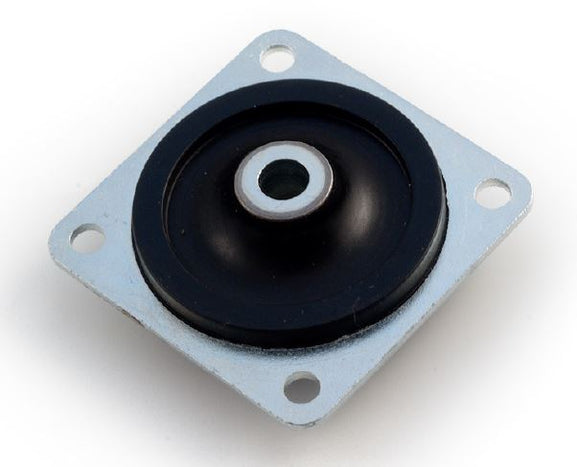

The Vibrostop PGM mount is a plate, or bulkhead, mount that will take loads of 500g to 15kg axially.
Plate mounts are useful when a low-profile solution is required; the mounts use a comparable level of overall space to an equivalent pedestal mount, however a plate mount uses space above and below the surface on which it is mounted whereas a pedestal mount only uses space on one side of the mounting surface.
The PGM anti-vibration support, designed for small-scale loads (0.5 to 15 daN), is used to protect instruments on land vehicles and aircraft, and to isolate vibrations created by small rotating machines (motors, pumps and compressors) housed within structures with limited available space.
The vibration isolation is achieved thanks to a membrane-type movement provided by a combination of good axial elasticity and radial stability
These mounts are often doubled up, either in series, or in parallel and they offer good isolation both radially and axially.
Features / benefits
- isolation for light equipment: loads from 0.5 to 15 daN
- very low overall height
- axial flexibility combined with high radial stability

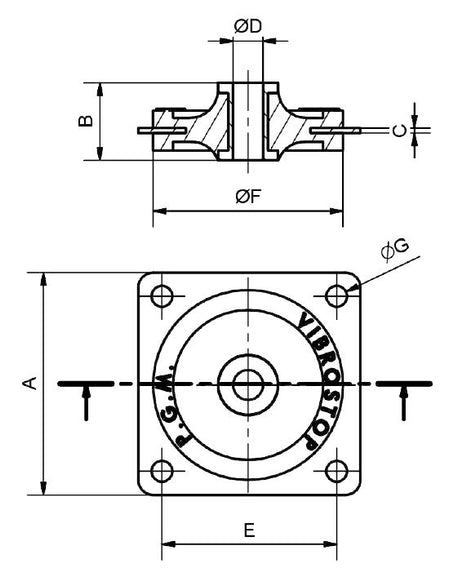

Dimensions and Loads
This information is provided for guidance purposes.
| Model | Load Rating (daN) | A | B | C | D (dia) | E | F (dia) | G (dia) |
| V-PGM-32-AS | 0.5 - 1.5 | 32 | 10 | 1 | 4 | 26 | 25 | 3.4 |
| V-PGM-32-N | 2.5 - 2.5 | 32 | 10 | 1 | 4 | 26 | 25 | 3.4 |
| V-PGM-32-R | 2.5 - 3.5 | 32 | 10 | 1 | 4 | 26 | 25 | 3.4 |
| V-PGM-44-AS | 2 - 6 | 44.5 | 15.5 | 1 | 6 | 35 | 38 | 4.2 |
| V-PGM-44-N | 6 - 10 | 44.5 | 15.5 | 1 | 6 | 35 | 38 | 4.2 |
| V-PGM-44-R | 10 - 15 | 44.5 | 15.5 | 1 | 6 | 35 | 38 | 4.2 |
Lead Times
These items are usually on a 3 week lead time, but this can double during the holiday seasons.
